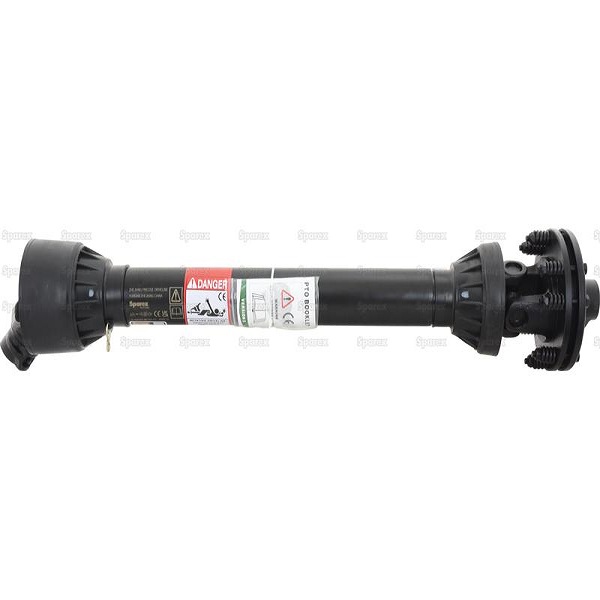

5 SERIES PTO Shaft – 1010mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Friction Clutch

5 SERIES PTO Shaft – 1010mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Friction Clutch (164294)

Clutch Setting Nm 1000

HP Rating @ 540RPM 47

HP Rating Range @ 540RPM up to 54

Implement End – 1 3/8” x 6 Spline Friction Disc Clutch

Kilowatt Power Rating @ 540RPM 35

Lz Length (mm) 1010

PTO Series – AB5/A5

Torque (Nm) – 620

Torque – 335 – 1240Nm

Total Closed Length (mm) – 1281

Tractor End – 1 3/8” x 6 Spline Q.R.

Tube Profile – Triangle

Universal Joint Dimensions – 30,2 x 79,4mm

£370.76
