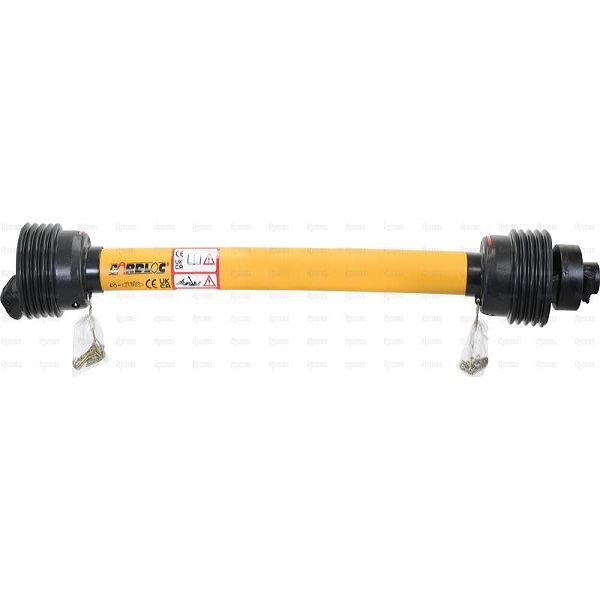

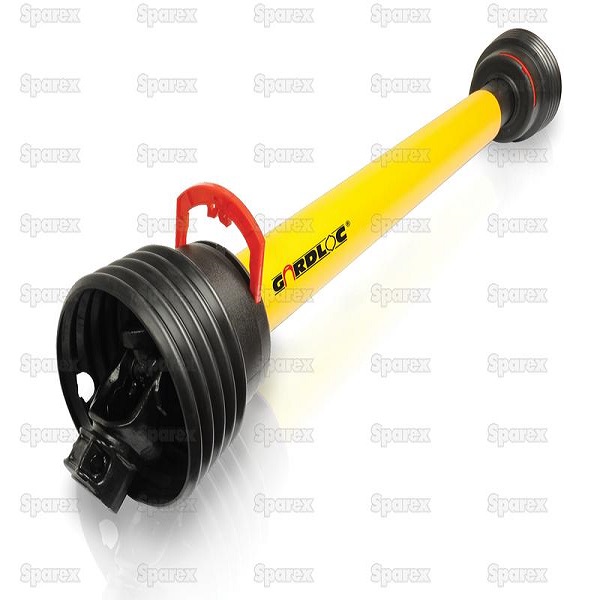

5 Series PTO Shaft – 1510mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Overunn Clutch

5 Series PTO Shaft – 1510mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Overunn Clutch (166270)

Alternative to

164292

Brand

GARDLOC

HP Rating @ 540RPM 47

HP Rating Range @ 540RPM up to 54

Implement End – 1 3/8” x 6 Spline Overunning Clutch

Kilowatt Power Rating @ 540RPM 35

Lz Length (mm) 1510

PTO Series – AB5/A5

Torque (Nm) 620

Torque 335 – 1240Nm

Total Closed Length (mm) 1781

Tractor End – 1 3/8” x 6 Spline Q.R.

Tractor PTO Rotation – Clockwise

Tube Profile – Triangle

Universal Joint Dimensions – 30,2 x 79,4mm

£453.60
