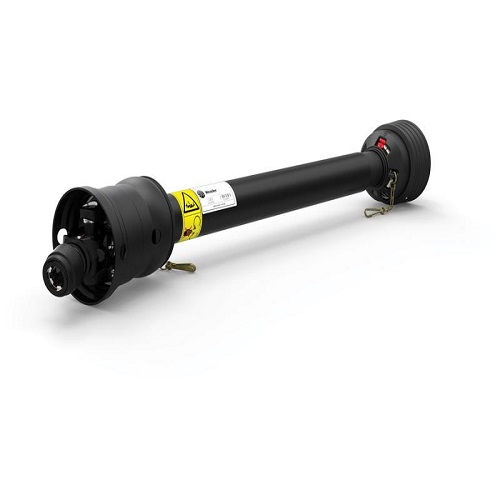

8 Series Weasler PTO Shaft – WWCV Wide Angle – one Side, (Lz) Length 910mm, 1 3/8” x 6 Spline 80° W.A. to 1 3/4” x 6 Spline Shear Bolt Limiter

Brand-Weasler

Clutch Setting Nm-4180

Guard Type-WWCV Wide Angle

HP Rating @ 540RPM-117

HP Rating Range @ 540RPM-55 to 119

Implement End-1 3/4” x 6 Spline Shear Bolt Limiter

Italian Series-AB8/CAT6

Kilowatt Power Rating @ 540RPM-87

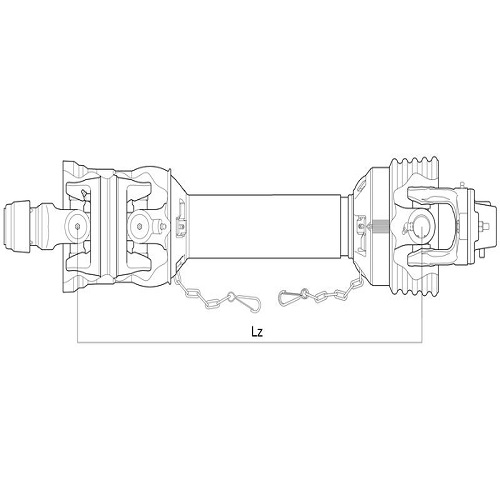

Lz Length (mm)-910

PTO Series-AB8/CAT6

Shearbolt Clutch Bolt Ø mm-12

Shearbolt Clutch Radius mm-56

Torque (Nm)-2260

Torque Range (Nm)-2255 – 3225Nm

Total Closed Length (mm)-1195

Tractor End-1 3/8” x 6 Spline 80° W.A. Auto Lock

Tube Profile-Triangle

Tube Ref-24569/12521

Universal Joint Dimensions-35 x 106.5mm

155510

£1,683.58
