CAT 3-3 HYDRAULIC TOP LINK C/W KNUCKLE & HOOK – 60MM MIN LENGTH

CAT 3-3 HYDRAULIC TOP LINK C/W KNUCKLE & HOOK – 60MM MIN LENGTH

A (mm) – 152

Category – 3/3

Check Valve Position – Top

Cylinder Bore (mm) – 90

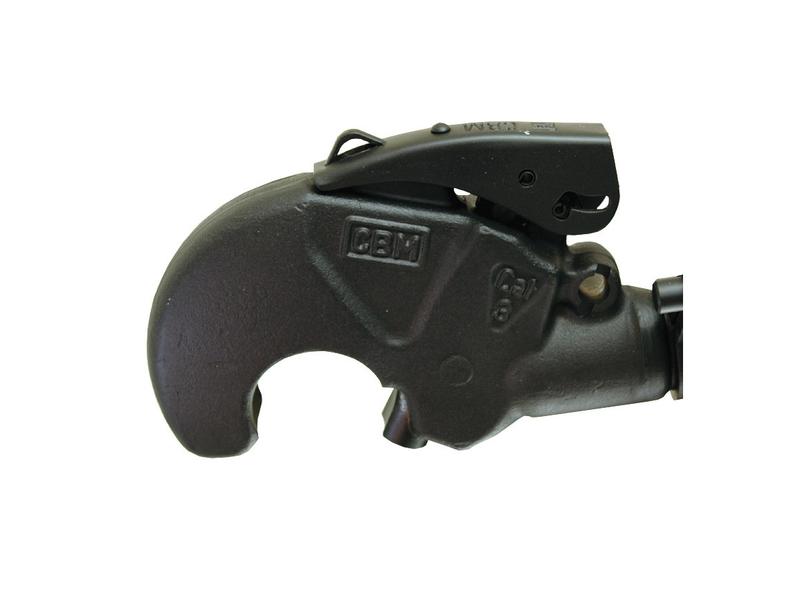

Implement End – Q.R CBM Hook

Lift kgs @180 bar – 8770

Maximum Length (mm) – 876

Minimum Length (mm) – 650

Rod Ø (mm) – 45

Suitable for Tractors up to HP/Kw – 200hp (147kW)

Supplied with – Hose set, chain & ball, marker label with knuckle & pin

Thrust kgs @180 (bar) – 11700

Tractor End – Knuckle

331201
