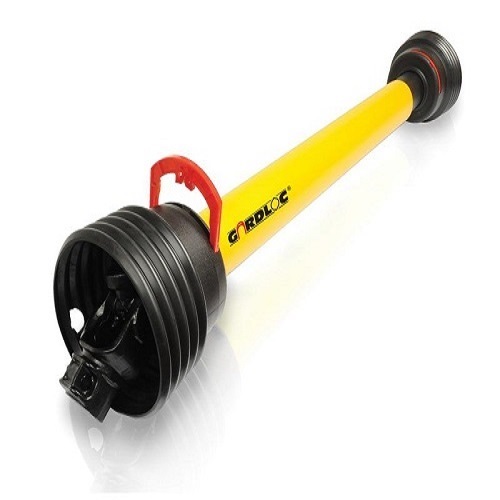

4 Series GARDLOC PTO Shaft – (Lz) Length: 1010mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Q.R.

Brand-GARDLOC

Guard Type-Gardloc

HP Rating @ 540RPM-35

HP Rating @ 1000RPM-53

HP Rating Range @ 540RPM-up to 54

Implement End-1 3/8” x 6 Spline Q.R.

Italian Series-AB4/A4

Kilowatt Power Rating @ 540RPM-26

Kilowatt Power Rating @ 1000RPM-39

Lz Length (mm)-1010

PTO Series-AB4/A4

Torque (Nm)-460

Torque Range (Nm)-335 – 1240Nm

Total Closed Length (mm)-1226

Tractor End-1 3/8” x 6 Spline Q.R.

Tube Profile-Triangle

Tube Ref-12507/12508

Universal Joint Dimensions-27 x 74.5mm

128682

£185.27
