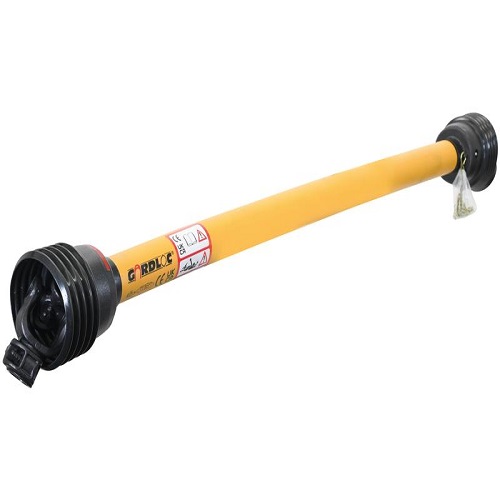

GARDLOC PTO Shaft – (Lz) Length: 1510mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Shear Bolt Limiter

Brand-GARDLOC

Clutch Setting Nm-2500

Guard Type-Gardloc

HP Rating @ 540RPM-64

HP Rating Range @ 540RPM-55 to 119

Implement End-1 3/8” x 6 Spline Shear Bolt Limiter

Italian Series

AB6/A6-Kilowatt Power Rating @ 540RPM-47

Lz Length (mm)-1510

PTO Series-AB6/A6

Shearbolt Clutch Bolt Ø mm-10

Shearbolt Clutch Radius mm-55

Torque (Nm)-830

Torque Range (Nm)-335 – 1240Nm

Total Closed Length (mm)-1765

Tractor End-1 3/8” x 6 Spline Q.R.

Tube Profile-Triangle

Tube Ref-12509/12512

Universal Joint Dimensions-30.2 x 92mm

166273

£433.42
