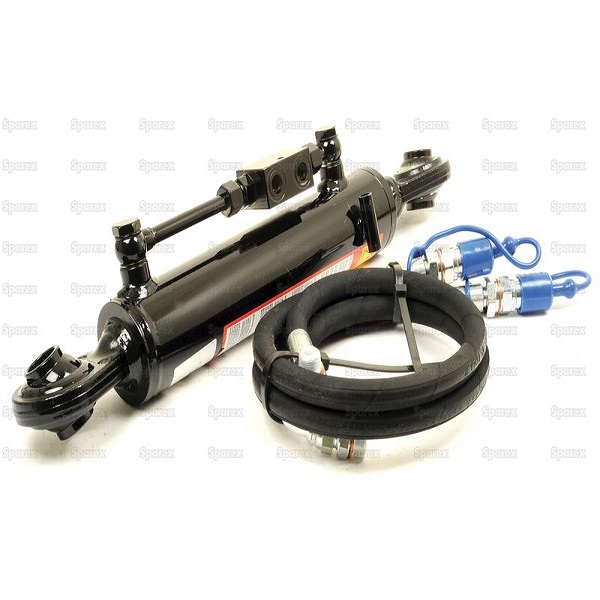

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 63mm, Min. Length : 535mm

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 63mm, Min. Length : 535mm (331481)

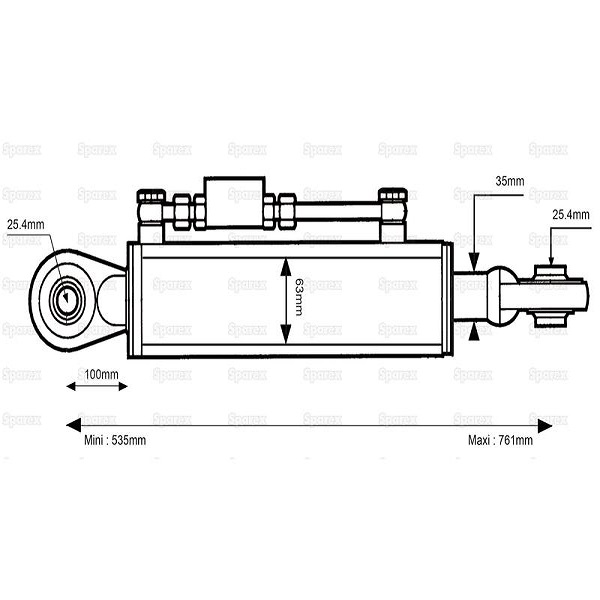

A (mm) 100

Category Implement End 2

Category Tractor End 2

Category 2/2

Check Valve Position – Top

Cylinder Bore (mm) 63

Implement End – Ball

Lift kgs @180 bar 3960

Maximum Length (mm) 761

Minimum Length (mm) 535

Rod Ø (mm) 35

Suitable for Tractors up to HP/Kw 100hp (74kW)

Supplied with Hose Set

Thrust kgs @180 (bar) 5730

Tractor End Fixing – Fixed

Tractor End – Ball

£324.00
