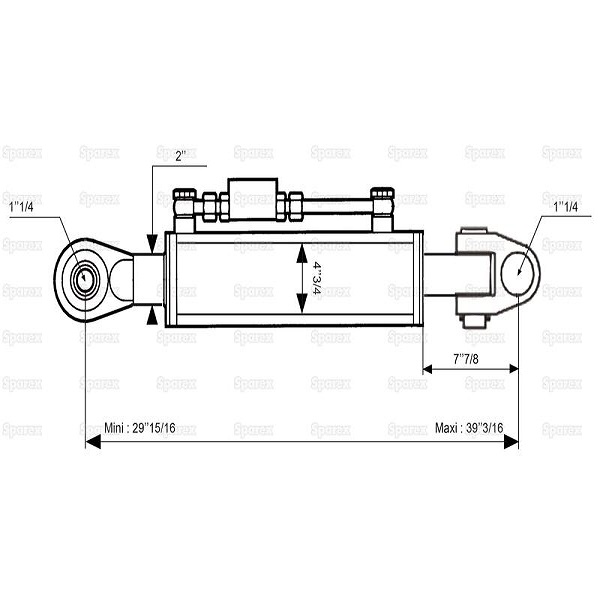

Hydraulic Top Link (Cat.3/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm

Hydraulic Top Link (Cat.3/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm (119712)

A (mm) 200

Category Implement End 3

Category Tractor End 3

Category 3/3

Check Valve Position – Top

Cylinder Bore (mm) 120

Implement End – Ball

Lift kgs @180 bar 18600

Maximum Length (mm) 995

Minimum Length (mm) 760

Rod Ø (mm) 50

Suitable for Tractors up to HP/Kw 400hp (294kW)

Supplied with Hose Set

Thrust kgs @180 (bar) 24600

Tractor End – Knuckle

£1,363.22
