Hydraulic Top Link (Cat.3/3) Knuckle and Ball, Cylinder Bore: 90mm, Min. Length : 640mm

Hydraulic Top Link (Cat.3/3) Knuckle and Ball, Cylinder Bore: 90mm, Min. Length : 640mm (399991)

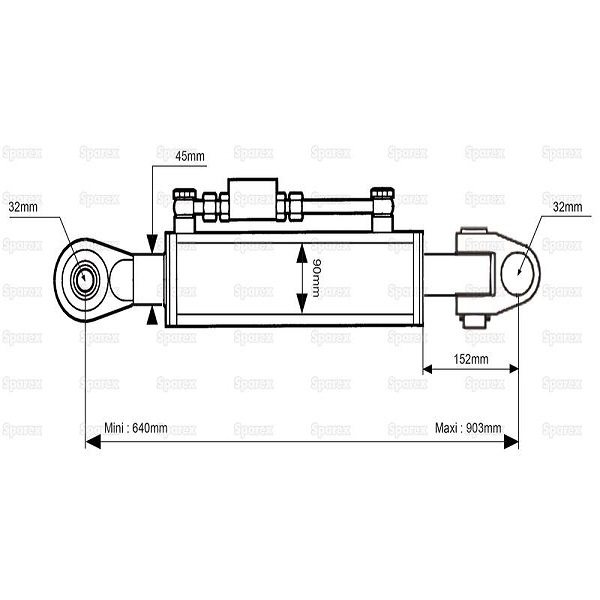

A (mm) 152

Category Implement End 3

Category Tractor End 3

Category 3/3

Check Valve Position – Top

Cylinder Bore (mm) 90

Implement End Ball

Lift kgs @180 bar 8770

Maximum Length (mm) 903

Minimum Length (mm) 640

Rod Ø (mm) 45

Suitable for Tractors up to HP/Kw 200hp (147kW)

Supplied with Hose Set

Thrust kgs @180 (bar) 11700

Tractor End Fixing S.10288

Tractor End – Knuckle

£752.04
