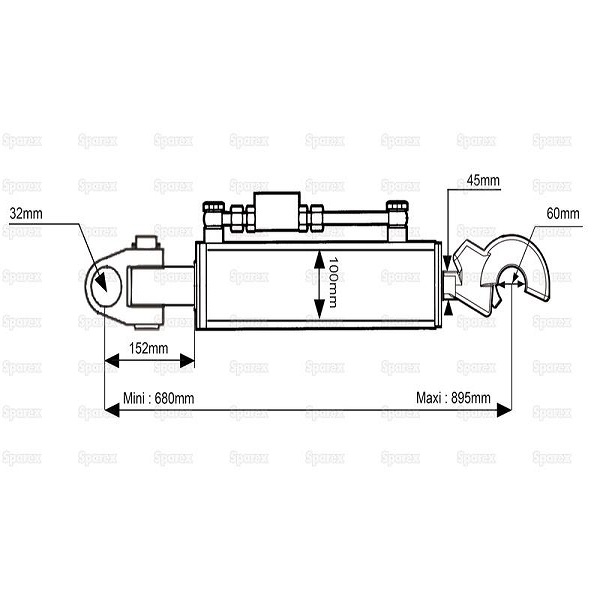

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 105mm, Min. Length : 680mm

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 105mm, Min. Length : 680mm (331521)

A (mm) 152

Category Implement End 3

Category Tractor End 3

Category 3/3

Check Valve Position – Top

Cylinder Bore (mm) 105

Implement End – Q.R CBM Hook

Lift kgs @180 bar 11520

Maximum Length (mm) 895

Minimum Length (mm) 680

Rod Ø (mm) 45

Suitable for Tractors up to HP/Kw 250hp (184kW)

Supplied with Hose set, chain & ball, marker label with knuckle & pin

Thrust kgs @180 (bar) 14440

Tractor End Fixing – S.10288

Tractor End – Knuckle

£1,080.00
