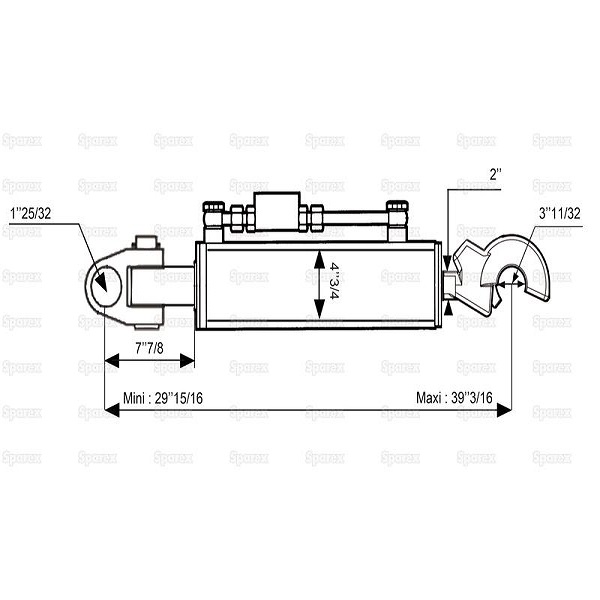

Hydraulic Top Link (Cat.4/4) Knuckle and Q.R CBM Hook, Cylinder Bore: 120mm, Min. Length : 760mm

Hydraulic Top Link (Cat.4/4) Knuckle and Q.R CBM Hook, Cylinder Bore: 120mm, Min. Length : 760mm (119726)

A (mm) 200

Category Implement End 4

Category Tractor End 4

Category 4/4

Check Valve Position – Top

Cylinder Bore (mm) 120

Implement End – Q.R CBM Hook

Lift kgs @180 bar 18600

Maximum Length (mm) 995

Minimum Length (mm) 760

Rod Ø (mm) 50

Suitable for Tractors up to HP/Kw 400hp (294kW)

Supplied with Hose set, chain & ball, marker label with knuckle & pin
