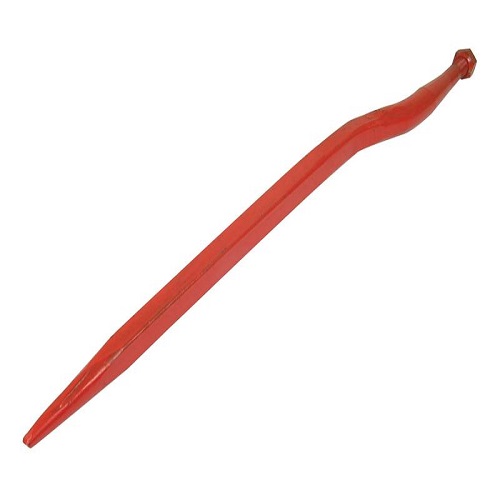

Loader Tine – Cranked 820mm, Thread size: M24 x 1.50 (Square) To fit as: KK221195

A (mm)
820
B (mm)
130
Brand
SHW
Colour
Red
Conus Reference
K111
Fitting
Conus 1
HD Bush
S.22829
Maximum Tine Ø (mm)
36
Maximum Torque (Nm)
550
Nut Included
Yes
Nut
S.77029
Primary OE Reference
KK221195
Profile
Square
Related products
77029
STD Bush
S.21527
Tariff Code
8426990000
Thread size
M24 x 1.50
Thread type
Metric
Tine Length (ins)
32
Tine Length (mm)
820
Type
Cranked
Warning:
Nuts must be retightened according to the instructed torque after 5 hours of operation using a torque-controlled spanner.
77014

£48.34
