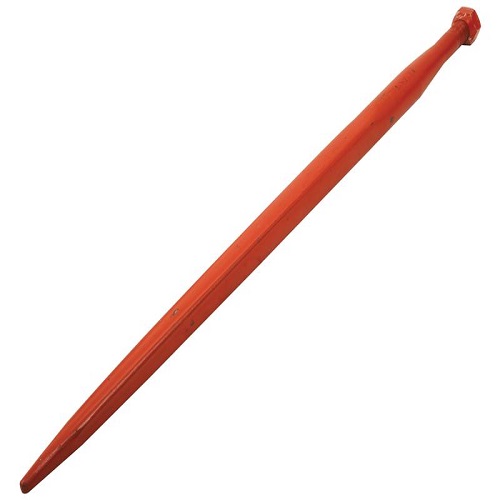

Loader Tine – Straight 1000mm, Thread size: M24 x 1.50 (Square) To fit as: KK221155M24

A (mm)
1000
B (mm)
145
Brand
SHW
C (mm)
na
Colour
Red
Conus Reference
K111
Fitting
Conus 1
HD Bush
S.1840
Length (mm)
N/A
Maximum Tine Ø (mm)
36
Maximum Torque (Nm)
550
Nut Included
Yes
Nut
S.77029
Primary OE Reference
KK221155M24
Profile
Square
Related products
22829, 77029
STD Bush
S.14902
Tariff Code
8426990000
Thread size
M24 x 1.50
Thread type
Metric
Tine Length (ins)
39
Tine Length (mm)
1000
Type
Straight
Warning:
Nuts must be retightened according to the instructed torque after 5 hours of operation using a torque-controlled spanner.
128936

£63.59
