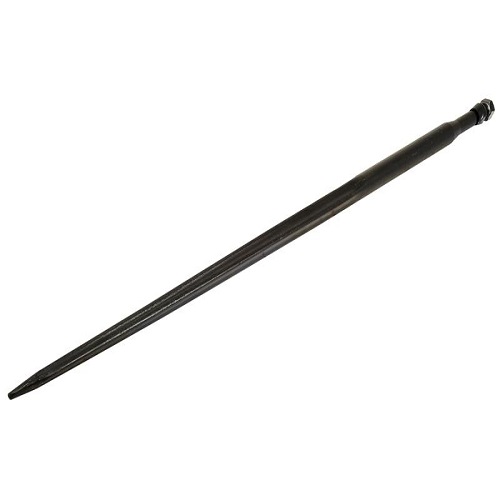

Loader Tine – Straight 1100mm, Thread size: M22 x 1.50 (Star) To fit as: DBA035

A (mm)-1100

B (mm)-460

Brand-SHW

C (mm)-na

Colour-Black

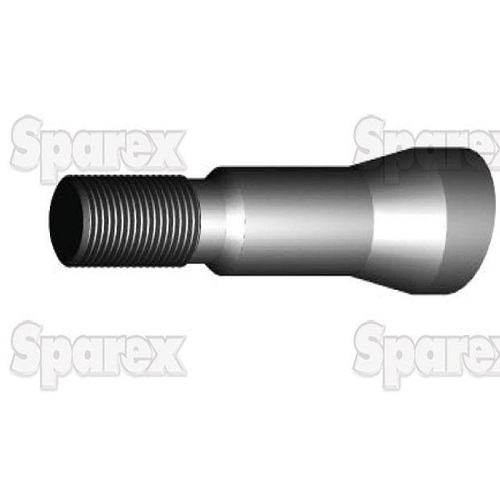

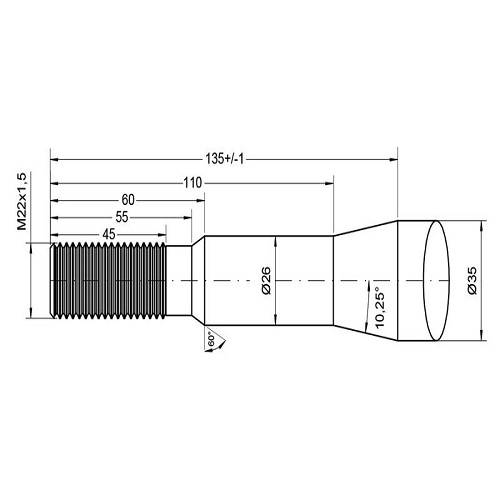

Conus Reference-K113

Fitting-Special Conus (Nut & Ring Included)

Length (mm)-N/A

Maximum Tine Ø (mm)-35

Maximum Torque (Nm)-500

Nut Included-Yes

Nut

DBA035-

Profile-Star

Ring

STD Bush

Thread size-M22 x 1.50

Thread type-Metric

Tine Length (ins)-43

Tine Length (mm)-1100

Type-Straight

Warning:-Nuts must be retightened according to the instructed torque after 5 hours of operation using a torque-controlled spanner.
