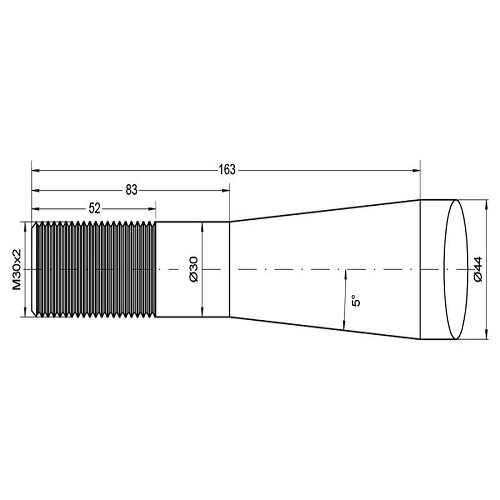

Loader Tine – Straight 980mm, Thread size: M30 x 2.00 (Square) To fit as: 70401020

Fitting: Conus 2
Max. Tine Ø44mm-

A (mm)-980

B (mm)-163

Brand-SHW

C (mm)-na

Colour-Red

Conus Reference-K143

Fitting-Conus 2

Length (mm)-N/A

Maximum Tine Ø (mm)-44

Maximum Torque (Nm)-700

Nut Included-Yes

Nut

Profile-Square

STD Bush

Thread size-M30 x 2.00

Thread type-Metric

Tine Length (ins)-38 1/2

Tine Length (mm)-980

Type-Straight

Warning:-Nuts must be retightened according to the instructed torque after 5 hours of operation using a torque-controlled spanner.
