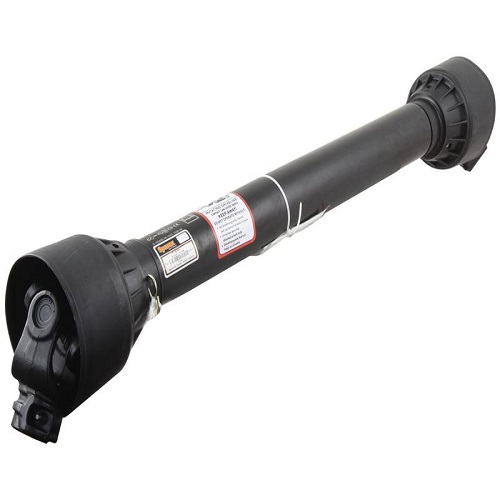

Sparex PTO Shaft – (Lz) Length: 1010mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Q.R.

Brand-Sparex

HP Rating @ 540RPM-64

HP Rating Range @ 540RPM-55 to 119

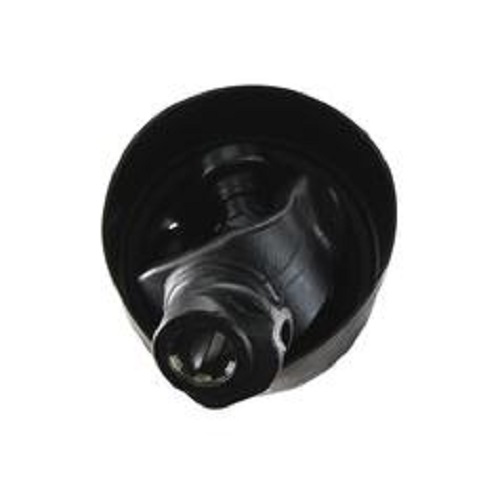

Implement End-1 3/8” x 6 Spline Q.R.

Italian Series-AB6/A6

Kilowatt Power Rating @ 540RPM-47

Lz Length (mm)-1010

PTO Series-AB6/A6

Torque (Nm)-830

Torque Range (Nm)-335 – 1240Nm

Total Closed Length (ins)-49

Total Closed Length (mm)-1244

Tractor End-1 3/8” x 6 Spline Q.R.

Tube Profile-Triangle-Tube Ref-12509/12512

Universal Joint Dimensions-30.2 x 92mm

162400

£261.10
