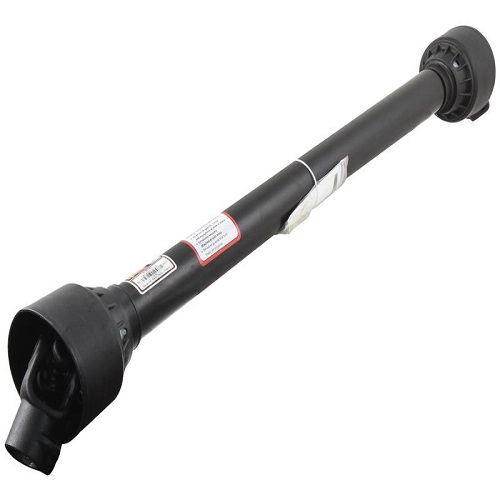

2 Series Sparex PTO Shaft – (Lz) Length: 1010mm – 540 x 540 shearbolt

Brand-Sparex

Clutch Setting Nm-790

HP Rating @ 540RPM-21

HP Rating Range @ 540RPM-up to 54

Implement End-1 3/8” x 6 Spline Shear Bolt Limiter

Italian Series-AB2/A2

Kilowatt Power Rating @ 540RPM-15

Lz Length (mm)-1010

PTO Series-AB2/A2

Shearbolt Clutch Bolt Ø mm-6

Shearbolt Clutch Radius mm-48

Torque (Nm)-270

Torque Range (Nm)-210-334Nm

Total Closed Length (mm)-1206

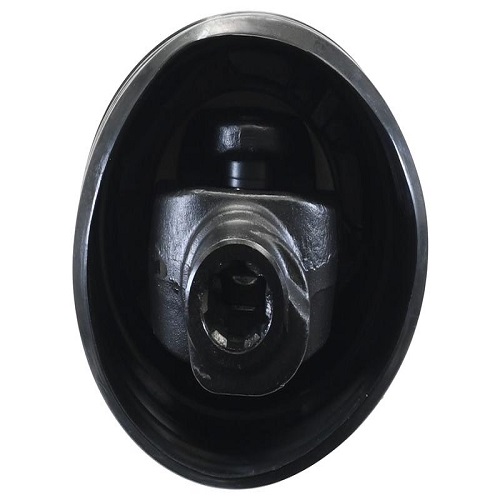

Tractor End-1 3/8” x 6 Spline Q.R.

Tube Profile-Triangle

Tube Ref-12504/12505

Universal Joint Dimensions-23.8 x 61.2mm

164276

£191.46
