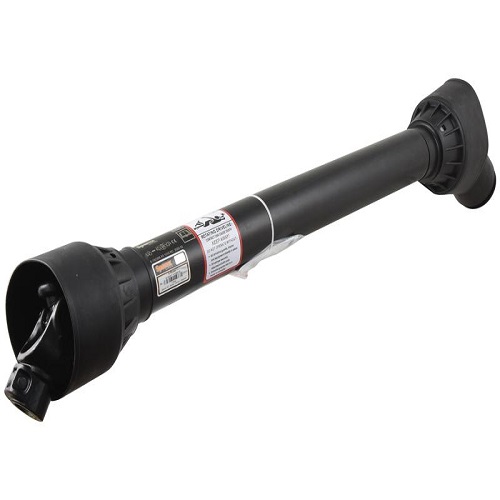

4 Series Sparex PTO Shaft – (Lz) Length: 1010mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Ratchet Clutch

Brand-Sparex

Clutch Setting Nm-600

HP Rating @ 540RPM-35

HP Rating Range @ 540RPM-up to 54

Implement End-1 3/8” x 6 Spline Ratchet Clutch

Italian Series-AB4/A4

Kilowatt Power Rating @ 540RPM-26

Lz Length (mm)-1010

PTO Series-AB4/A4

Torque (Nm)-460

Torque Range (Nm)-335 – 1240Nm

Total Closed Length (ins)-50.2

Total Closed Length (mm)-1275

Tractor End-1 3/8” x 6 Spline Q.R.

Tube Profile-Triangle

Tube Ref-12507/12508

Type-2 Row

Universal Joint Dimensions-27 x 74.5mm

164287

£284.69
