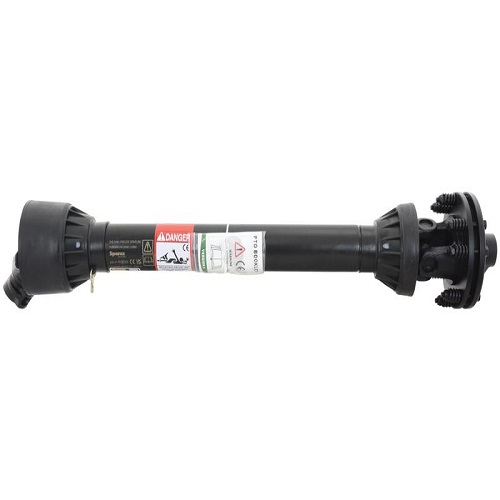

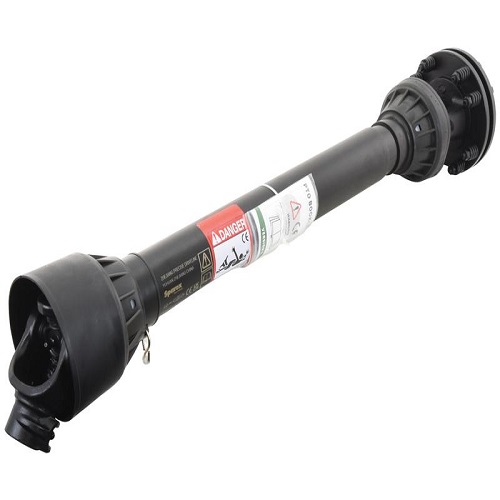

Sparex PTO Shaft – (Lz) Length: 860mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Friction Disc Clutch

Brand-Sparex

Clutch Setting Nm-1300

HP Rating @ 540RPM-64

HP Rating Range @ 540RPM-55 to 119

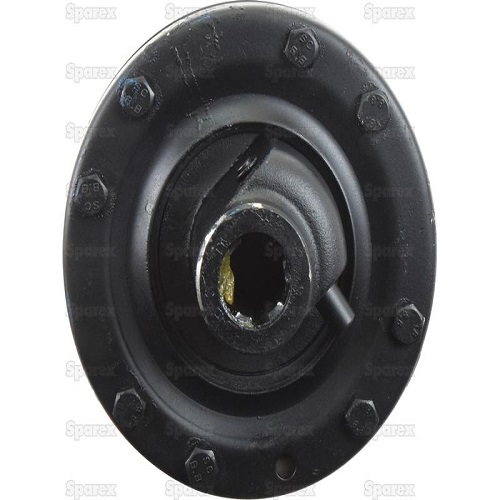

Implement End-1 3/8” x 6 Spline Friction Disc Clutch

Italian Series-AB6/A6

Kilowatt Power Rating @ 540RPM-47

Lz Length (mm)-860

Number of Discs-2

PTO Series-AB6/A6

Torque (Nm)-830

Torque Range (Nm)-335 – 1240Nm

Total Closed Length (mm)-1138

Tractor End-1 3/8” x 6 Spline Q.R.

Tube Profile-Triangle

Tube Ref-12509/12512

Universal Joint Dimensions-30.2 x 92mm

164305

£410.21
