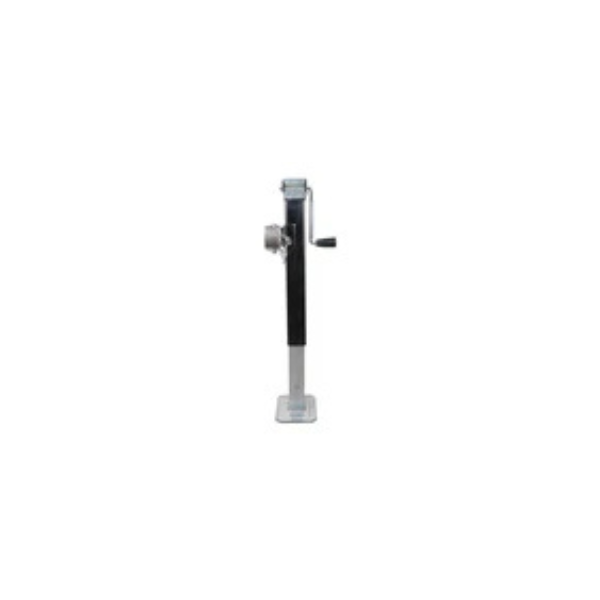

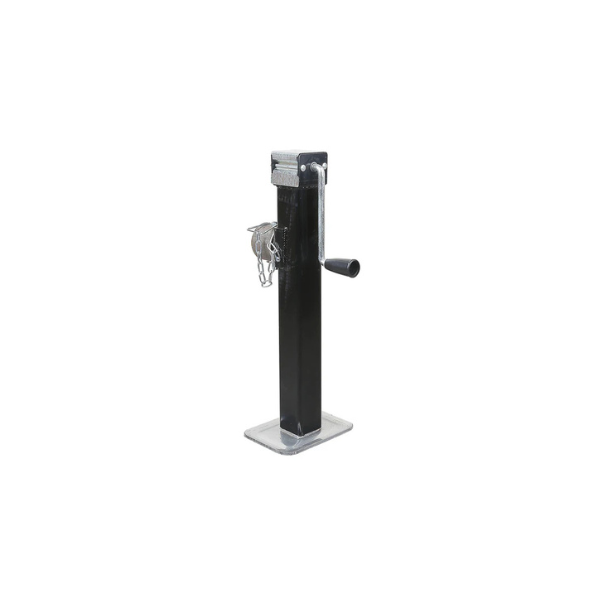

TRAILER JACK 7000LB – 11KG

Swivel design, easy operation, corrosion resistance and secure install.

Widely used with a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer.

Heavy duty steel material and durable black powder coating, great stability and long lasting.

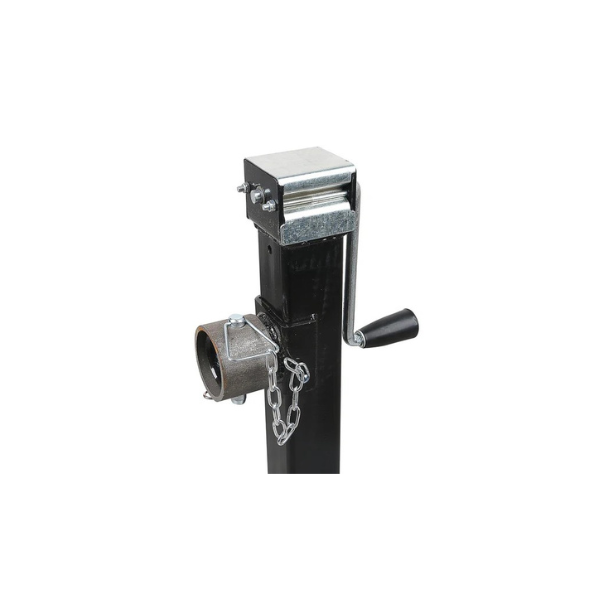

Swivel bracket allows jack to fully swing up.

Features a pull pin to securely lock into place.

Designed to mount onto the trailer frame with a weld-on installation.

Side wind handle for greater flexible use and easy operation.

Widely used with a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer.

Specifications:

Material: Steel

Color: Black

Finish: Powder coating

Max. Lift Capacity: 5000lbs

Max. Hold Capacity: 7000lbs

Vertical Travel: 16.5 Inches (420mm)

Minimum Extended Height: 580mm

Maximum Extended Height: 1000mm

Minimum height from bottom to installation center hole: 390mm

Maximum height from bottom to installation center hole: 810mm

Foot Plate Size: 150mm x 200mm

Outer Tube Size: 65.5 x 65.5 x 3.5 mm

Inner Tube Size: 56.5 x 56.5 x 2.75 mm

Pull-pin Diameter: 16.5mm

Inner Welding Pipe Diameter: 64 x 5 mm

Outer Welding Pipe Diameter: 76 x 5 mm

Weight: 11kg
