Vacuum pump – MEC8000H – Hydraulic driven – 1000 RPM

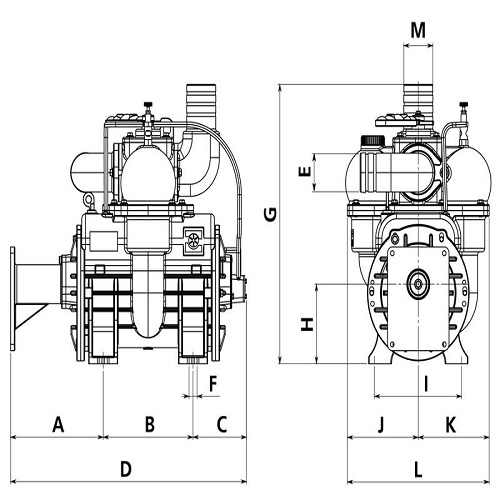

A (mm)-287

B (mm)-252-

Brand-Battioni

C (mm)-196

Capacity LPM-8100

D (mm)-735

Drive Type-Hydraulic driven

E (mm)-80

F (mm)-15

G (mm)-597

H (mm)-164

Height (mm)-597

I (mm)-227

J (mm)-195

K (mm)-215

L (mm)-410

Length (mm)-735

Lubrication-Manual lubrication

M (mm)-80

Max. RPM-1000

Maximum Working Pressure-1.5 Bar

Model-MEC8000H

Notes

Supplied with hydraulic motor Not supplied with 1 1/2” Pressure Relief Valve-Oil Tank Capacity (ltrs.)

3.8-P (mm)-80-

Power Absorption Max. Pressure (kw)-22-

Power Absorption Max. Vacuum (kw)-15

Rotation-Clockwise

Supplied with-Supplied with hydraulic motor S.72200

Vacuum Max. (Hg)-0.9 Bar

Width (mm)-410

149222

£3,497.17
