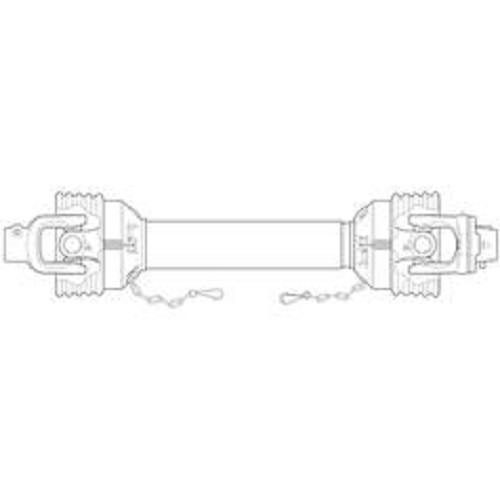

Weasler PTO Shaft – (Lz) Length: 1360mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Shear Bolt Limiter

Brand-Weasler

Clutch Setting Nm-2920

Guard Type-Easylock

HP Rating @ 540RPM-64

HP Rating Range @ 540RPM-55 to 119

Implement End-1 3/8” x 6 Spline Shear Bolt Limiter

Italian Series-AB6/A6

Kilowatt Power Rating @ 540RPM-48

Lz Length (mm)-1360

PTO Series-AB6/A6

Shearbolt Clutch Bolt Ø mm-10

Shearbolt Clutch Radius mm-56

Torque (Nm)-1483

Torque Range (Nm)-1245 – 2250Nm

Total Closed Length (mm)-1622

Tractor End-1 3/8” x 6 Spline Slide Lock

Tube Profile-Triangle

Tube Ref-12509/12512

Universal Joint Dimensions-30.2 x 92mm

£685.15
