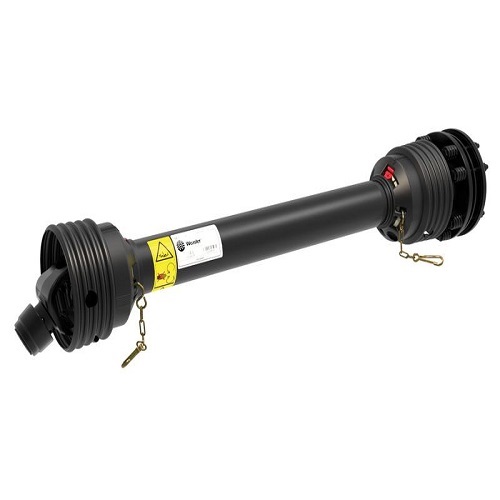

4 Series Weasler PTO Shaft – (Lz) Length: 1510mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Friction Disc Clutch

Brand-Weasler

Clutch Setting Nm-900

Guard Type-Easylock

HP Rating @ 540RPM-36

HP Rating Range @ 540RPM-up to 54

Implement End-1 3/8” x 6 Spline Friction Disc Clutch

Italian Series-AB4/A4

Kilowatt Power Rating @ 540RPM-27

Lz Length (mm)-1510

Number of Discs-2

PTO Series-AB4/A4

Torque (Nm)-836

Torque Range (Nm)-335 – 1240Nm

Total Closed Length (mm)-1768

Tractor End-1 3/8” x 6 Spline Slide Lock

Tube Profile-Triangle

Tube Ref-12507/12508

Universal Joint Dimensions-27 x 74.5mm

118360

£628.49
